Description

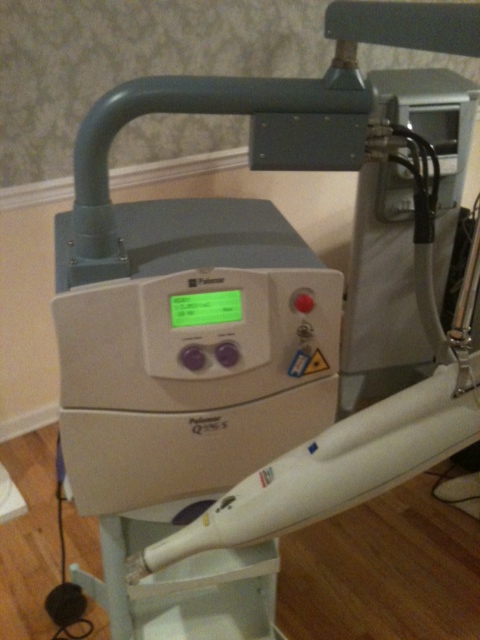

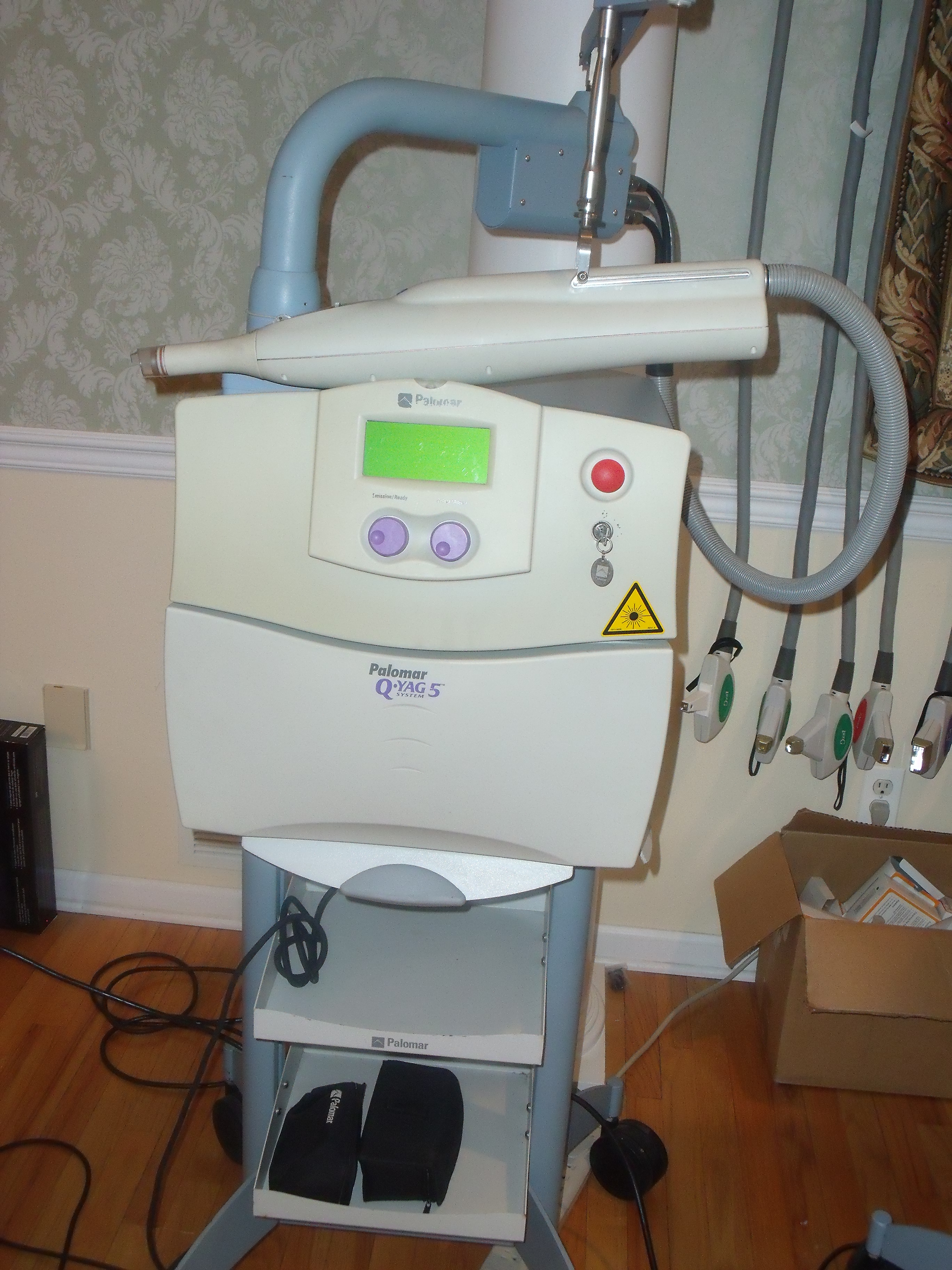

PALOMAR Q-YAG 5 LASER

YEAR: 2002

This system has peak powers that rival the Medlite C6 laser.

THE PALOMAR Q-YAG 5 LASER SYSTEM OFFERS
THE MOST ADVANCED TECHNOLOGY FOR TATTOO
AND PIGMENTED LESION REMOVAL:
— Next generation Q-switched laser system
— Dual, blendable wavelengths (1064/532 nm) for
multiple ink colors
— Three spot sizes (2, 4 and 6 mm) for versatile treatments

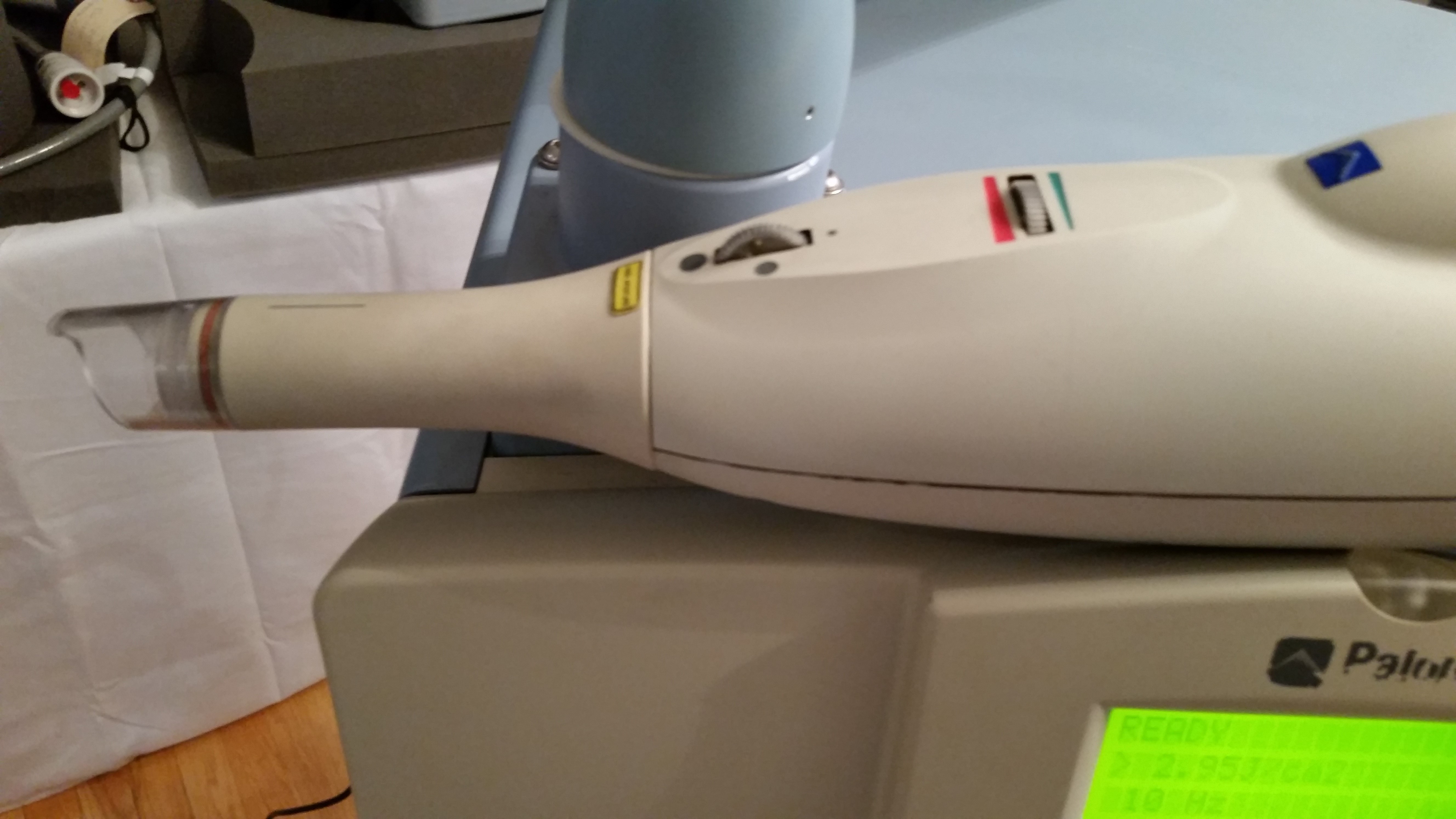

— Self-contained laser handpiece for high reliability
— Modular design for maximum mobility
— Shortest available pulse duration (2.5 ns) for highest
peak power
— Smoothest beam profile

Technical Specifications:

Wavelength
1064 nm / 532 nm (mixed wavelengths) and 1064 nm

Spot Size
2 mm, 4 mm, 6 mm

Fluence
Up to 12.5 J/cm2

Pulsewidth 3 +/- 1 ns
Pulse Rate
Single Shot, 1 Hz, 2 Hz, 5 Hz, 10 Hz

Beam Delivery Direct
Electrical Req. 100-240 V, 50/60 Hz
Weight
Upper Module: 42 lbs.
Lower Module: 42 lbs.
Arm: 15 lbs.
Handpiece: 3 lbs.
